KASTOradial M 6 - Edition „More Economy“ (220 V)

Regular price $5,230.00 Sale price $5,810.00

Unit price per

plus sales tax.
No shipping included, unless requested otherwise.
Delivery time on request.

only 1 left in stock

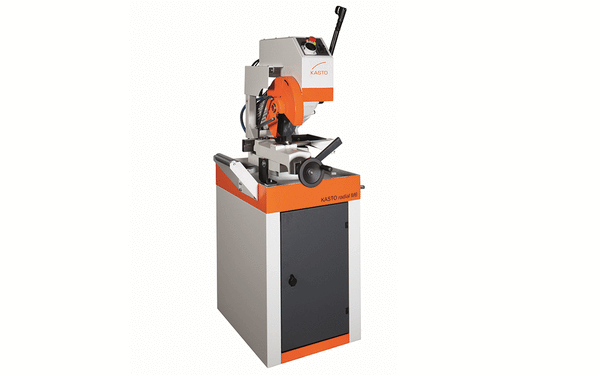

New machine KASTOradial M 6 (220 Volt) in the KASTOshop Edition More Economy

Manual Circular Saw

Only here in the KASTOshop: Brand new, directly from the manufacturer, with original KASTO service, at the best price!

The KASTOradial M 6 is a manual cold circular saw with two cutting speeds for the universal use in workshops. The easy handling facilitates miter cuts on both sides within 45°.

The clamping vice with counter clamping device for safe bar stock clamping for almost burr-free cut, metal saw blade HSS DMO 5 steam treated Ø 12.40 in. (315 mm) and also the re-circulating coolant system are standard equipment.

Included optional equipment:

  • Cutting speed 85.3/173.9 ft/min (26/53 m/min)
  • Special voltage
  • Machine base
  • Rapidly clamping measuring stop
Equipment details and scope of supply

Included optional equipment:

  • Cutting speed 85.3/173.9 ft/min (26/53 m/min)
  • Special voltage
  • Machine base
  • Rapidly clamping measuring stop
    • With additional rapid fixing, measuring range 0-19.69” (0 – 500 mm)

Scope of Supply

  • KASTOradial M 6 (220V) including the described standard and optional equipment
  • Clamping vice with counter clamping device
  • Material support roller
  • Circular saw blade HSS DM05 steam treated Ø 315 mm, 160 teeth
  • Recirculating coolant system
  • Ooperating instructions manual according to the EU Machinery Directive and EN 82079

We will be pleased to advise you individually if you require equipment which is not sold through the KASTOshop.

Technical Data
Cutting range:
Cutting range 90° round solid material 2.56 in. (65 mm)
Cutting range 90° round tubes 3.54 in. (90 mm)
Cutting range 90° square tubes 3.35 x 3.35 in. (85 x 85 mm)
Cutting range 90° flat (W x H) tubes 4.72 x 2.76 in. (120 x 70 mm)
Cutting range - 45° round solid material  2.36 in. (60 mm)
Cutting range - 45° round tubes 2.76 in. (70 mm)
Cutting range - 45° square tubes 2.56 x 2.56 in. (65 x 65 mm)
Cutting range - 45° flat (W x H) tubes 2.76 x 1.97 in. (70 x 50 mm)
Cutting range + 45° round solid material 2.36 in. (60 mm)
Cutting range + 45° round tubes 3.15 in. (80 mm)
Cutting range + 45° square tubes 2.76 x 2.76 in. (70 x 70 mm)
Cutting range + 45° flat (W x H) tubes 2.95 x 2.76 in. (75 x 70 mm)


Dimensions and weight
Length x Width
37.01 x 48.43 in. (940 x 1230 mm)
Height without base 32.48 in. (825 mm)
Height with base 60.24 in. (1530 mm)
Material support height without base 9.65 in. (245 mm)
Material support height with base 37.40 in. (950 mm)
Total weight without base 455.40 lbs. (207 kg)
Total weight with base 565.40 lbs. (257 kg)


Performance characteristics:
Power 1.88/ 2.90 HP or 1.85 / 2.90 HP (1.4/ 2.2 kW 1.5 / 2.2 kW)
Voltage 220 Volt / 60 Hz
Cutting speed
85.30/173.9 ft./min (26/53 m/min)
Dimensions of saw blade 12.40 x 0.10 x 1.26 in. (315 x 2.5 x 32 mm)


Color:
Light grey RAL 7035, structural painting
Anthracite grey RAL 7016, structural painting
Pure orange RAL 2004, structural painting

Electrical equipment: In accordance with DIN EN 60204. Supply voltage 220 Volt, 60 Hz. Control voltage 24 Volt, DC.

Type of mains: TN mains according to IEC 364/VDE 0100

Protective measures against indirect contact: Over-current protector (zero balancing).

The mains supply of the operator (size and characteristic of the main fuse selected as well as the total impedance of PE and outer conductor in the supply line to the machine) has to be designed in such a way that the permissible shut-down time in the event of an error is not exceeded.

The use of a differential current switch in the mains in coming supply is not permitted.

Safety requirements: The offered machine corresponds with the valid safety requirements according to the machinery directive 2006/42/EG.

Infeed and Outfeed roller conveyor

Roller conveyor infeed side

3,75’ Infeed roller conveyor

  • 45” (1142 mm) long, equipped with 4 rollers, diameter of rollers 1.57” (40 mm), width of roller conveyor 8.66” (220 mm), usable width 8.15” (207 mm), distance between roller centers 4 x 11.26” (286 mm), material support height 37.4” (950 mm), carrying capacity 110.8 lbs/ft (150 kg/m).

6,56’ Infeed roller conveyor

  • 78.74” (2000 mm) long, equipped with 7 rollers, diameter of rollers 1.57” (40 mm), width of roller conveyor 8.66” (220 mm), usable width 8.15” (207 mm), distance between roller centers 7 x 11.26” (286 mm), material support height 37.4” (950 mm), carrying capacity 110.8 lbs/ft (150 kg/m).

Roller conveyor outfeed side

3,74’ Outfeed roller conveyor with cover plates

  • 45” (1142 mm) long, equipped with 4 rollers, diameter of rollers 1.57” (40 mm), width of roller conveyor 8.66” (220 mm), usable width 8.15” (207 mm), distance between roller centers 4 x 11.26” (286 mm), material support height 37.4” (950 mm), carrying capacity 110.8 lbs/ft (150 kg/m) and cover plates.

6,56’ Outfeed roller conveyor with cover plates

  • 78.74” (2000 mm) long, equipped with 7 rollers, diameter of rollers 1.57” (40 mm), width of roller conveyor 8.66” (220 mm), usable width 8.15” (207 mm), distance between roller centers 7 x 11.26” (286 mm), material support height 37.4” (950 mm), carrying capacity 110.8 lbs/ft (150 kg/m) and cover plates.

Warranty

This sawing machine is particularly suitable for normally machinable structural steels and aluminum in round, flat and square form. Materials that are difficult to machine and plastics are only suitable to a limited extent. Occasional use in single-shift workshop operation is envisaged. The specified cutting ranges and performance characteristics must be observed. The use of uneven, twisted or burred starting material can severely impair the cutting accuracy. For more detailed information on the correct use of the machine, please refer to the operating instructions. Disregarding this area of application and/or General Terms and Conditions can lead to the warranty claims becoming void.

Shipping

According to FCA (Incoterms 2020)

In case help is required for the shipment please contact us after placing the order at: thekastoshop@us.kasto.com
