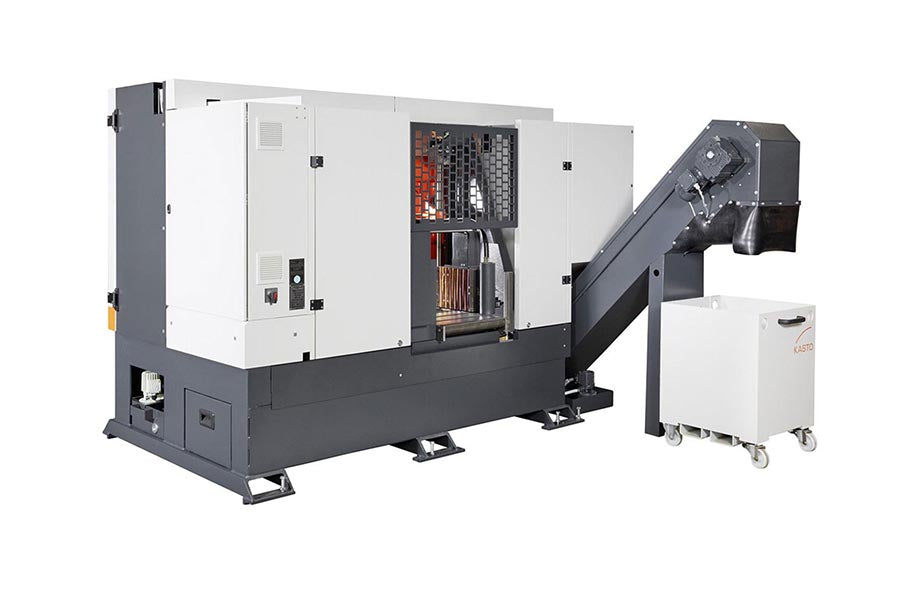

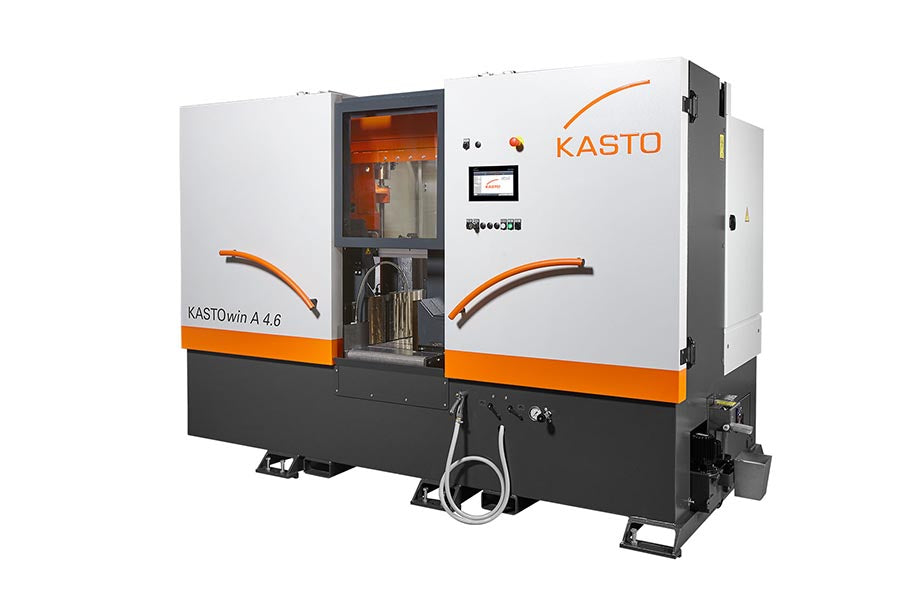

New machine KASTOwin A 4.6 in the KASTOshop Edition „More Economy“

The comfortable fully automatic machine for daily unmanned operation.

Only here in the KASTOshop: Brand new, directly from the manufacturer, with original KASTO service, at the best price!

Automatic high-performance bandsawing machine for serial cutting of solids, tubes and profiles in material qualities which are easy to difficult to cut. The standard precise linear guides (re-circulating ball units with grease lubricated guide carriage) guarantee maximum life.

The standard ProControl 9” offers the optimum operation of the machine. Easy, clearly arranged and guided job entry. After reaching the target quantity, the machine shuts off automatically. By reducing set-up times to a minimum, maximum cutting performances are achieved in automatic mode. The precise drive via ball bearing spindle in material feed guarantees an accurate material length positioning.

Frequency controlled spur gear driving with overload monitoring and clamping pressure monitoring for blade clamping and both vices belong to the standard equipment for working processes regarding cutting of individual pieces, smaller and average lot sizes and large series.

An infinitely variable electromechanic saw feed with servomotor and ball bearing spindle offers the best conditions for an efficient, sensitive and tool-saving cutting operation.

Equipment

  • Machine Base
  • Machine Enclosure according to the latest CE-Criteria
  • Saw Unit (Saw Frame)
  • Guide of the Saw Unit
  • Saw Blade Guide
  • Clearance Stroke System for Material
  • Adjustment of the Saw Unit’s Height
  • Saw Blade Tension
  • Swarf Removal at Saw Blade by motor-driven, self-adjusting Chip Brush
  • Material Clamping - Machine Vice
  • Material Clamping - Feed Vice
  • Automatic, Numerically Controlled Material Feed
  • Operation
  • KASTO Control Sawing Machines ProControl 9"
  • Material Feeding
  • Material Outfeed
  • Hydraulic System
  • Coolant Tank
  • Diagnosis of performance and energy consumption

Included optional equipment

  • KASTOrespond for optimum feed speed
  • Safety package
  • LED machine lamp
  • Automatic zero positioning start/KASTOsense
  • KASTO worm-type chip conveyor
  • Coolant hose for machine cleaning
  • Clamping power regulation
  • Vertical roller

Scope of Supply

  • KASTOwin A 4.6 including the described standard and optional equipment
  • KASTO control for sawing machines ProControl 9”
  • Multiple feed, short cut lengths up to 250 mm are achieved by an incremental feed
  • Machine enclosure according to the latest CE criteria
  • Saw motor frequency regulated
  • Feed speeds for saw feed and material feed servo-controlled
  • Chip removal brush driven by an electric motor
  • Hydraulic saw blade tension, electronically monitored
  • Horizontal vise, clamping on both sides of the saw blade
  • Material clearance stroke system
  • Continuous machine roller conveyor
  • Bi-metal saw blade
  • Glue anchors to dowel the machine
  • 1 operating instructions manual according to the EU Machinery Directive and EN 82079

We will be pleased to advise you individually if you require equipment which is not sold through the KASTOshop.



Technical Data

Cutting range

Cutting range 90° round 18.11 in. (460 mm)
Cutting range 90° flat (W x H) 18.11 x 18.11 in. (460 x 460 mm)
Clamping range 0 - 18.11 in. (0 - 460 mm)
Smallest cut-off length 0.39 in. (10 mm)
Smallest dimension to be cut 0.39 x 0.39 in. (10 x 10 mm)
Shortest remnant length in automatic operation (possible only if the material has a perfect geometric surface) 1.38 in. (35 mm)
Shortest remnant lenght individual cut 0.39 in. (10 mm)

Dimensions and weight

 Dimensions (L x W) 64.96 x 114.17 in. (1650 x 2900 mm)
Height 79.92 in. (2030 mm)
Material support height 27.56 in. (700 mm)
Weight 7605.95 lbs. (3450 kg)

Performance characteristics

 Saw motor, frequently controlled 5.36 HP (4 kW)
Total power 8.05 HP (6 kW)
Material feed lenght, individual cut 19.69 in. (500 mm)
Multiple feed 393.66 in. (9999 mm)
Machine roller conveyer, lenght 43.31 in. (1100 mm)
Ball-bearing massive transport rollers 8 pieces
Dimesions of rollers 2.36 in. (60 mm)
Distance between rollers 5.31 in. (135 mm)
Cutting speed, infinitely adjustable 39.37 - 492.13 ft./min (12-150 m/min)
Dimensions of saw blade 240 x 1.61 x 0.05 in. (6096 x 41 x 1.3 mm)
Cutting feed electrically adjustable via ball bearing spindle
Material feed ball bearing spindle
Material clamping hydraulic
Saw blade cleaning self-adjusting chip brush, driven by electric motor
Coolant

Pump capacity 75 l/min with a delivery heigth of 2 m, Volume of coolant tank approx. 100 l



More details

KASTO Control for Sawing Machines

ProControl 9”

Hardware

  • Industrial personal computer, fanless, no movable components
  • Robust metal casing, front sheet made of aluminium
  • Resistive touch screen
  • TFT colour screen 9“
  • Ambient temperature 0 - 50 °C
  • Protection category front panel IP65

Software

  • Operating system Windows 10 Enterprise LTSC 2019
  • SIMATIC S7 - 1500 Failsafe Software Controller CPU

Decentralized peripheral devices

  • Connection of input/output modules and drive control system via Profinet
  • All axes/drive controls are equipped with absolute encoders. Thus, referencing after switching on is no longer necessary.

Program function

Visualization:

  • Ergonomic, shop-floor-oriented operation via colour touch panel
  • Operation based on the standardized user interface and the uniform operation philosophy of all KASTO controls
  • Clear separation between navigation and function
  • Fast access via status bar
  • Title of the current operation page in clear text
  • Operator guidance by means of operating advices, e.g. changeover of operation categories, tool exchange etc.
  • Online change of language
  • Change of units metric/imperial
  • Change of material table (EN, AISI, JIS)
  • Display of axis for service purposes
  • Display of current warnings/disturbances
  • Fast access to history of warnings and disturbances with detailed information in clear text via status bar

Job entry:

  • Easy and clear job entry
  • Simple and understandable symbols
  • Selection of material quality (solid square, thick-walled square tube, thin-walled square tube, solid round, thick-walled round tube, thin-walled round tube) via graphic symbols
  • Preselection of technology data (cutting speed, saw feed) by means of direct entry or selection in the material table
  • Material table with assignment of exemplary materials to the proposed technology data and integrated filter function for fast access. Material table is editable.

Job management:

  • It is easy to save the latest job data incl. technology data
  • Saving under alphanumeric job number, e.g. drawing number, part number
  • Easy selection and recall of saved orders via order number
  • Integrated filter function for fast access

Tool management for one tool:

  • Easy entry of tool data
  • Tool monitoring concerning blade life or cutting surface
  • Indication of blade life
  • Entry of tooth pitch for the calculation of the optimum saw feed
  • Selection of a general reduction or increase of the nominal values for cutting speed and saw feed via slide control

Types to start (may differ, depending on machine type):

  • “Automatic start”: Put the material manually to the cutting position and start cutting job.
  • “Manual zero positioning start”: Put the leading edge of the material to any position in the outfeed vice. Measure the distance between the leading edge of the material and the saw blade and enter this value in the control system. Start the cutting job. Correcting measures for the cut-off length of the first cut-off piece are calculated by the control system. The first cut-off piece without trim cut is positioned automatically to the cut-off length.
  • “Start individual cut”: Move the material manually to the cutting position and start the individual cut. Job entry is not necessary. As an option, a correcting value for the cut-off length can be entered.
  • “Automatic start for remnants”: same as “automatic start”, but the material is not clamped anew in the infeed vice.
  • “Manual zero positioning start for remnants”:
    same as “manual zero positioning start”, but the material is not clamped anew in the infeed vice.

Process visualization:

  • Clearly arranged display of the job in process
  • Override function for cutting speed and saw feed speed
  • Quantity and length can be changed during the running job
  • Further jobs can be entered during automatic operation
  • Display of automatic single correction values for cutting speed and saw feed

Operation-hour counter, statistic functions:

  • Operation-hour counter for “Machine ON”, “Saw motor ON”, “Automatic operation”, each as a total counter and resettable counter
  • Piece counter and cut area counter, each as a total counter and resettable counter
  • Display of current cutting times: “Time per cut“ and “Cycle time“
  • Pre-calculation and display of current job end time

Special functions:

  • Automatic adaptation of technology data, e.g. by cut-in process for new tools, consideration of tooth pitch etc.
  • Optimization for remnants (automat) If the material ends in the ongoing cutting job, the length of the existing remnant is measured and it is checked if cutting jobs for shorter cut-off lengths exist in the ongoing block of cutting jobs. If they exist, the cutting job is changed automatically until no more cut-off pieces can be cut from the existing remnant.

Details equipment

Machine Base

Heavy-duty, distortion-free welded construction

Machine Enclosure according to the latest CE Criteria

The KASTOwin A 4.6 is equipped with complete enclosure. A high degree of safety, cleanliness and low-noise cutting is achieved with best accessibility on the material infeed and outfeed side.

Saw Unit (Saw Frame)

Manufactured in robust weldment without distortion, with ribbing optimized against vibration. By using the latest constructional technology and manufacturing methods, an extremely quiet running without vibration is obtained. This means shorter cutting times and longer tool life.

Guide of the Saw Unit

Linear guides, each one with two guide carriages on one guide rail. The recirculating ball unit consists of one solid pretensioned roller running system.The greased guide carriages ensure a maximum usable life.

Saw Blade Guide

Lateral guiding by hydraulically pretensioned carbide slideways, with clearance stroke system for fast exchange of saw blade. Back guiding by rollers. Automatic adjustment of the blade guide in accordance with the width of the material to cut.

Clearance Stroke System for Material

After a cut has been finished in automatic cycle the clamped material to be cut is retracted on the infeed side by approx. 2 mm from the saw blade by means of a clearance stroke system for material (to prolong blade life).

Adjustment of the Saw Unit’s Height

Start of cutting operation and cutting height can be adjusted either via teach function or automatically via the entered material diameter.

Saw Blade Tension

Hydraulic, electronically monitored with automatic pressure reduction if the machine is out of operation, automatic switching-off if the saw blade breaks.

Swarf Removal at Saw Blade by motor-driven, self-adjusting Chip Brush

This smart mechanical system adjusts itself over the complete lifetime of the chip brush.

The brush is thus always in its optimal position, which extends its life considerably.

Material Clamping - Machine Vice

The hydraulically actuated horizontal vice enables an optimum work piece clamping on the outfeed side of the saw blade and cutting of short remnants.

In order to be able to guarantee safe transport of forged material as well, the fixed vice jaw is automatically retracted from the contact edge by approx. 10 mm during material transport movement (clearance stroke system).

Material Clamping - Feed Vice

Hydraulically actuated horizontal vice with integrated material limit switch.

In order to be able to guarantee safe transport of forged material as well, the fixed vice jaw is automatically retracted from the contact edge by approx. 10 mm during material transport movement (clearance stroke system).

Automatic, Numerically Controlled Material Feed

Via feed gripper system. Material feed length 500 mm. Standard multiple feed. Short cut lengths up to 250 mm are achieved by an incremental feed. Material feed via servomotor and ball bearing spindle.

Special feed length up to 1500 mm in one stroke can be supplied for an extra charge (Pos. 1510).

Operation

All operating elements are arranged centrally and ergonomically at the front side of the machine.

Material Feeding

By a roller conveyor, integrated into the machine.

Material Outfeed

Via deposit table. Transfer height 700 mm, container height max. 650 mm.

The material outfeed side meets the effective European and international safety standards. A safety inspection of the complete machine has been performed by the German Professional Association and the French Apave.

A large-dimensioned deposit table with coolant recirculation or equipped with rollers, for connection to roller conveyor, can be supplied on request.

Hydraulic System

Compact system in block construction, removable, integrated into machine base and easy to access and check from outside. In that way, maintenance time for oil-level control and exchange of filter can be minimized.

This extremely energy-saving system only runs when required.

Heating and cooling packages can be supplied on request.

Coolant Tank

In machine base. Coolant supply through nozzles at the blade guides.

Diagnosis of performance and energy consumption

Recording and display of the current data of performance and energy consumption based on non-recurring measuring values for basic functions as well as the calculation of motor performance of all drives during the running process.

Details optional equipment

KASTOrespond

The new KASTOrespond system, especially designed for this machine line, provides ideal settings of the machine for solid materials, pipes and profiles of all material types and is available for all sizes of the KASTOwin series.

The system continuously records the forces on the tool without using an additional and often error-prone sensor system. It intelligently converts information into the optimum digital downfeed speed. Thick-walled and thin-walled material, constantly changing contact length in round material as well as hard spots in solid materials are recognized on time by KASTOrespond and the feed speed is smartly adapted accordingly. The operator only needs to program the relevant data such as the cutting lengths, the quantities and the type of material to be cut. Everything else is taken care of by the KASTOwin.

Safety package

Recommendable if the machine partly works in unmanned shift, consisting of:

Supervision of the non-driven blade running wheel by SpeedControl (electronic supervision of minimum number of revolutions). If the minimum number of revolutions is too low, e.g. by reason of a lade break, the machine tops automatically.

Supervision of deviation of cut by BandControl. If a programmable value of deviation is exceeded, the machine stops automatically.

Supervision of coolant quantity by FlowControl. If the coolant flow rate is too low, the machine switches off automatically.

LED machine lamp

Automatic zero positioning start/KASTOsense

After having entered the requested cut-off length and quantity and after having activated the control function “zero positioning”, the first cut-off piece is at once positioned fully automatically at the requested cut-off length and then cut. The system is designed for material heights from 30 mm.

Function expanded by two additional types to start:

  • “Automatic zero positioning start”: Put the leading edge of the material to any position in the outfeed vice and start the cutting job. The first cut-off piece will be positioned automatically to the cut-off length.
  • “Automatic zero positioning start for remnants”: same as “automatic zero positioning start”, but the material is not clamped anew in the infeed vice.

These types to start are possible from a material height ≥ 30 mm.

They are selectable and deselectable. When they are deselected, the types to start “Manual zero positioning start” and “Manual zero positioning start for remnants” are active.

KASTOsense:

  • Automatic recording of the material height from any position of the saw feed in all types to start.
  • With all types to start, except for zero positioning starts, the recording is active also for restart of cutting operations that have begun already.

KASTOsense is possible from a material width ≥ 30 mm.

KASTOsense is not possible for very easy to cut special materials (e.g. plastics, partly aluminium).

KASTOsense is selectable and deselectable.

KASTO worm-type chip conveyor

Ejection height 450 mm

Coolant hose for machine cleaning

With spray pistol

Clamping power regulation

By means of handwheel with reading at pressure gauge

Vertical roller

In extension with the material supporting edge, guarantees undisturbed material feed.

Infeed and outfeed periphery

  • Conveyors are supplied with coolant return.
  • Frequency driven powered conveyors available upon request.

Infeed roller conveyor

20’ Infeed roller conveyor

  • Approximately 240 in. (6096 mm) long, type RB 3.0, with 17 transport rollers, diameter of rollers 3.54 in. (90 mm), usable width 24 in. (610 mm), distances between roller centers is 14.25 in. non-driven, incl. 3 fixed lateral guiding rollers, 11 in. (280 mm) high, carrying capacity 2016 lbs/ft. (3000 kg/m).

10’ Infeed roller conveyor

  • Approximately 120 in. (3048 mm) long, type RB 3.0, with 9 transport rollers, diameter of rollers 3.54 in. (90 mm), usable width 24 in. (610 mm), distances between roller centers is 14.25 in. non-driven, incl. 2 fixed lateral guiding rollers, 11 in. (280 mm) high, carrying capacity 2016 lbs/ft. (3000 kg/m).

Outfeed roller conveyor

5’ Outfeed roller conveyor

  • Approximately. 60 in. (1524 mm) long, with 9 transport rollers, diameter of rollers 3.54 in. (90 mm), usable width 24 in. (610 mm), distances between roller centers 8 x 7.125 in. non-driven, all roller gaps are covered by removable sheet metal plates, incl. device preventing the material from rolling down, carrying capacity 2016 lbs/ft. (3000 kg/m).

10’ Outfeed roller conveyor

  • Approximately. 120 in. (3048 mm) long, with 14 transport rollers, diameter of rollers 3.54 in. (90 mm), usable width 24 in. (610 mm), distances between roller centers 13 x 7.125 in. non-driven, all roller gaps are covered by removable sheet metal plates, incl. device preventing the material from rolling down, carrying capacity 2016 lbs/ft. (3000 kg/m).

Bases of the quotation

Electrical equipment: In accordance with DIN EN 60204. Supply voltage 440 Volt, 60 Hz. Control voltage 24 Volt, DC. Upon request other voltages at additional cost.

Type of mains: TN mains according to IEC 364/VDE 0100

Protective measures against indirect contact: Over-current protector (zero balancing).

The mains supply of the operator (size and characteristic of the main fuse selected as well as the total impedance of PE and outer conductor in the supply line to the machine) has to be designed in such a way that the permissible shut-down time in the event of an error is not exceeded.

The use of a differential current switch in the mains in coming supply is not permitted.

Safety requirements: The offered machine corresponds with the valid safety requirements according to the machinery directive 2006/42/EG.

Cutting accuracy: On perfect conditions with perfect tools the deviation of cut is within ±0.1 mm per 100 mm cutting height with standard steel qualities. For material with a perfect geometric surface an accuracy of length of cut-off pieces in accordance with ISO 2768, degree of accuracy fine is achievable with individual bars and cut-off pieces longer 6 mm. When using uneven, twisted or burred initial material, the achievement of the mentioned cutting accuracies is restricted.

Warranty

This sawing machine is particularly suitable for easily to normally machinable materials in solid material, tubes and profiles. Only conditionally suitable are materials that are difficult to machine as well as plastics. An application up to two-shift production operation is envisaged. The specified cutting ranges and performance characteristics must be observed. The use of uneven, twisted or burred starting material can severely impair the cutting accuracy. For more detailed information on the correct use of the machine, please refer to the operating instructions. Disregarding this area of application and/or General Terms and Conditions can lead to the warranty claims becoming void.

Shipping

According to FCA (Incoterms 2020)

In case help is required for the shipment please contact us after placing the order at: thekastoshop@us.kasto.com

Back to top
